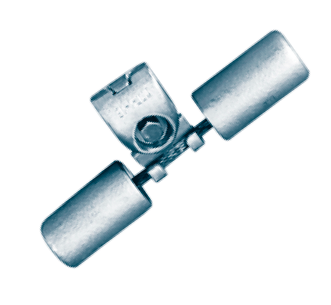

Гасители вибрации ГПГ используют на проводах и тросах линий электропередачи для предотвращения их поломок от усталостных напряжений, вызываемых вибрацией. Всего производится более 70 видов гасителей вибрации типа ГПГ. С ними Вы можете ознакомиться в каталоге компании Контакт. Вся продукция выполнена в соответствии с требованиями ТУ 3449-132-00111120-98.
|
Марка гасителя вибрации |
Размеры, мм |
Масса, кг |
||||
|
A |
H |
L |
d |
D |
||
|
ГПГ-0,8-9,1-300/10 |
68 |
102 |
300 |
9,1 |
9,0...11,0 |
2,43 |
|
ГПГ-0,8-9,1-300/13 |
69 |
104,5 |
300 |
9,1 |
11,0...14,0 |
2,43 |
|
ГПГ-0,8-9,1-300/16 |
72 |
108 |
300 |
9,1 |
14,0...17,0 |
2,45 |
|
ГПГ-0,8-9,1-350/13 |
69 |
103 |
350 |
9,1 |
11,0...14,0 |
2,45 |
|
ГПГ-0,8-9,1-350/16 |
72 |
108 |
350 |
9,1 |
14,0...17,0 |
2,47 |
|
ГПГ-0,8-9,1-400/10 |
68 |
102 |
400 |
9,1 |
9,0...11,0 |
2,47 |
|
ГПГ-0,8-9,1-400/13 |
69 |
104,5 |
400 |
9,1 |
11,0...14,0 |
2,47 |
|
ГПГ-0,8-9,1-450/16 |
72 |
108 |
450 |
9,1 |
14,0...17,0 |
2,51 |
|
ГПГ-1,6-11-350/10 |
83 |
123 |
350 |
11 |
9,0...11,0 |
4,37 |
|
ГПГ-1,6-11-350/13 |
84 |
125,5 |
350 |
11 |
11,0...14,0 |
4,37 |
|
ГПГ-1,6-11-400/13 |
84 |
125,5 |
400 |
11 |
11,0...14,0 |
4,4 |
|
ГПГ-1,6-11-400/16 |
87 |
129 |
400 |
11 |
14,0...17,0 |
4,42 |
|
ГПГ-1,6-11-400/20 |
90 |
135 |
400 |
11 |
17,0...20,0 |
4,46 |
|
ГПГ-1,6-11-450/13 |
84 |
125,5 |
450 |
11 |
11,0...14,0 |
4,43 |
|
ГПГ-1,6-11-450/16 |
87 |
129 |
450 |
11 |
14,0...17,0 |
4,45 |
|
ГПГ-1,6-11-450/23 |
93 |
140 |
450 |
11 |
20,0...26,0 |
4,65 |
|
ГПГ-1,6-11-450/31 |
97 |
146 |
450 |
11 |
26,0...32,0 |
4,75 |
|
ГПГ-1,6-11-450/35 |
98 |
149 |
450 |
11 |
32,0...35,0 |
4,75 |
|
ГПГ-1,6-11-500/13 |
84 |
125,5 |
500 |
11 |
11,0...14,0 |
4,46 |
|
ГПГ-1,6-11-500/16 |
87 |
129 |
500 |
11 |
14,0...17,0 |
4,48 |
|
ГПГ-1,6-11-500/20 |
90 |
135 |
500 |
11 |
17,0...20,0 |
4,52 |
|
ГПГ-1,6-11-550/16 |
87 |
129 |
550 |
11 |
14,0...17,0 |
4,52 |
|
ГПГ-1,6-11-550/20 |
90 |
135 |
550 |
11 |
17,0...20,0 |
4,56 |
|
ГПГ-1,6-13-350/13 |
84 |
124 |
350 |
13 |
11,0...14,0 |
4,54 |
|
ГПГ-1,6-13-400/16 |
87 |
129 |
400 |
13 |
14,0...17,0 |
4,6 |
|
ГПГ-1,6-13-400/20 |
90 |
135 |
400 |
13 |
17,0...20,0 |
4,64 |
|
ГПГ-1,6-13-400/23 |
93 |
140 |
400 |
13 |
20,0...26,0 |
4,8 |
|
ГПГ-1,6-13-450/20 |
90 |
135 |
450 |
13 |
17,0...20,0 |
4,69 |
|
ГПГ-1,6-13-450/23 |
93 |
140 |
450 |
13 |
20,0...26,0 |
4,85 |
|
ГПГ-2,4-11-400/13 |
84 |
129 |
400 |
11 |
11,0...14,0 |
6,01 |
|
ГПГ-2,4-11-450/13 |
84 |
129 |
450 |
11 |
11,0...14,0 |
6,11 |
|
ГПГ-2,4-11-450/16 |
87 |
132,5 |
450 |
11 |
14,0...17,0 |
6,13 |
|
ГПГ-2,4-11-500/13 |
84 |
129 |
500 |
11 |
11,0...14,0 |
6,14 |
|
ГПГ-2,4-11-500/16 |
87 |
132,5 |
500 |
11 |
14,0...17,0 |
6,16 |
|
ГПГ-2,4-11-500/20 |
90 |
138,5 |
500 |
11 |
17,0...20,0 |
6,2 |
|
ГПГ-2,4-11-550/20 |
90 |
138,5 |
550 |
11 |
17,0...20,0 |
6,23 |
|
ГПГ-2,4-11-550/23 |
93 |
143,5 |
550 |
11 |
20,0...26,0 |
6,4 |
|
ГПГ-2,4-11-600/23 |
93 |
143,5 |
600 |
11 |
20,0...26,0 |
6,43 |
|
ГПГ-2,4-13-400/20 |
90 |
138,5 |
400 |
13 |
17,0...20,0 |
6,32 |
|
ГПГ-2,4-13-450/13 |
84 |
127,5 |
450 |
13 |
11,0...14,0 |
6,31 |
|
ГПГ-2,4-13-450/16 |
87 |
132,5 |
450 |
13 |
14,0...17,0 |
6,33 |
|
ГПГ-2,4-13-450/20 |
90 |
138,5 |
450 |
13 |
17,0...20,0 |
6,37 |
|
ГПГ-2,4-13-450/23 |
93 |
143,5 |
450 |
13 |
20,0...26,0 |
6,53 |
|
ГПГ-2,4-13-450/31 |
97 |
149,5 |
450 |
13 |
26,0...32,0 |
6,57 |
|
ГПГ-2,4-13-500/13 |
84 |
127,5 |
500 |
13 |
11,0...14,0 |
6,35 |
|
ГПГ-2,4-13-500/16 |
87 |
132,5 |
500 |
13 |
14,0...17,0 |
6,37 |
|
ГПГ-2,4-13-500/20 |
90 |
138,5 |
500 |
13 |
17,0...20,0 |
6,41 |
|
ГПГ-2,4-13-500/23 |
93 |
143,5 |
500 |
13 |
20,0...26,0 |
6,57 |
|
ГПГ-2,4-13-500/31 |
97 |
149,5 |
500 |
13 |
26,0...32,0 |
6,61 |
|
ГПГ-2,4-13-500/35 |
98 |
152,5 |
500 |
13 |
32,0...35,0 |
6,66 |
|
ГПГ-2,4-13-550/20 |
90 |
138,5 |
550 |
13 |
17,0...20,0 |
6,45 |
|
ГПГ-2,4-13-550/23 |
93 |
143,5 |
550 |
13 |
20,0...26,0 |
6,61 |
|
ГПГ-2,4-13-600/23 |
93 |
143,5 |
600 |
13 |
20,0...26,0 |
6,66 |
|
ГПГ-3,2-13-450/16 |
87 |
136,5 |
450 |
13 |
14,0...17,0 |
8,01 |
|
ГПГ-3,2-13-450/20 |
90 |
142,5 |
450 |
13 |
17,0...20,0 |
8,05 |
|
ГПГ-3,2-13-450/23 |
93 |
147,5 |
450 |
13 |
20,0...26,0 |
8,21 |
|
ГПГ-3,2-13-450/31 |
97 |
153,5 |
450 |
13 |
26,0...32,0 |
8,25 |
|
ГПГ-3,2-13-450/38 |
100 |
159,5 |
450 |
13 |
35,0...38,0 |
8,27 |
|
ГПГ-3,2-13-500/20 |
90 |
142,5 |
500 |
13 |
17,0...20,0 |
8,09 |
|
ГПГ-3,2-13-500/35 |
98 |
156,5 |
500 |
13 |
32,0...35,0 |
8,34 |
|
ГПГ-3,2-13-550/20 |
90 |
142,5 |
550 |
13 |
17,0...20,0 |
8,13 |
|
ГПГ-3,2-13-550/23 |
93 |
147,5 |
550 |
13 |
20,0...26,0 |
8,29 |
|
ГПГ-3,2-13-550/31 |
97 |
153,5 |
550 |
13 |
26,0...32,0 |
8,33 |
|
ГПГ-3,2-13-600/23 |
93 |
147,5 |
600 |
13 |
20,0...26,0 |
8,34 |
|
ГПГ-3,2-13-600/31 |
97 |
153,5 |
600 |
13 |
26,0...32,0 |
8,38 |
|
ГПГ-3,2-13-600/35 |
98 |
156,5 |
600 |
13 |
32,0...35,0 |
8,43 |
|
ГПГ-3,2-13-650/35 |
98 |
156,5 |
650 |
13 |
32,0...35,0 |
8,47 |
|
ГПГ-3,2-13-650/38 |
100 |
159,5 |
650 |
13 |
35,0...38,0 |
8,49 |
|
ГПГ-4,0-13-500/20 |
90 |
145,5 |
500 |
13 |
17,0...20,0 |
9,77 |
|
ГПГ-4,0-13-500/23 |
93 |
150,5 |
500 |
13 |
20,0...26,0 |
9,93 |
|
ГПГ-4,0-13-500/38 |
100 |
162,5 |
500 |
13 |
35,0...38,0 |
9,99 |
|
ГПГ-4,0-13-550/20 |
90 |
145,5 |
550 |
13 |
17,0...20,0 |
9,81 |
|
ГПГ-4,0-13-550/23 |
93 |
150,5 |
550 |
13 |
20,0...26,0 |
9,97 |
|
ГПГ-4,0-13-550/31 |
97 |
156,5 |
550 |
13 |
26,0...32,0 |
10,01 |
|
ГПГ-4,0-13-600/31 |
97 |
156,5 |
600 |
13 |
26,0...32,0 |
10,06 |
|
ГПГ-4,0-13-600/35 |
98 |
159,5 |
600 |
13 |
32,0...35,0 |
10,11 |
|
ГПГ-4,0-13-600/38 |
100 |
162,5 |
600 |
13 |
35,0...38,0 |
10,08 |
